Cummins Series - Getewell

         Cummins has invested over US$140 million in China. As a foreign investor in China's engine industry, Cummins has eight joint ventures and wholly-owned manufacturing enterprises in China. Dongfeng Cummins produces B, C, and L series diesel engines, while Chongqing Cummins produces M, N, and K series diesel engines. Products comply with standards such as ISO 3046, ISO 4001, ISO 8525, IEC 34-1, GB1105, GB/T 2820, CSH 22-2, VDE 0530, and YD/T502-2000 "Technical Requirements for Diesel Generator Sets for Telecommunications".

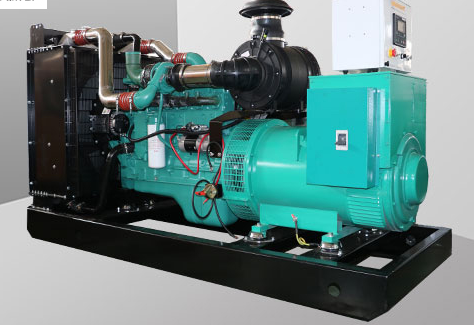

Dongfeng Cummins Generator Sets (CCEC): Featuring Sino-US joint venture Dongfeng Cummins B, L, and C series four-stroke diesel engines; integrated modular design reduces the total number of parts by more than 25% compared to other brands, lowering the size and weight of the diesel engine; stable and reliable performance, significantly reducing failure rate and maintenance costs; control system operating voltage: 24V (DC); rotary oil, diesel, and water filters, dry air filter; our Dongfeng Cummins generator sets power range: 18KW-200KW.

Chongqing Cummins Generator Sets (DCEC): Chongqing Cummins Diesel Generator Company is a world-leading enterprise in the design, production, and sales of diesel engines and compressed natural gas engines. Sino-US joint venture Chongqing Cummins N and K series diesel engines; four-stroke industrial diesel engines; rotary oil, diesel, and water filters, dry air filter; stable and reliable performance, compact structure, high power; electronic speed control system; our Chongqing Cummins generator sets power range: 200KW-1200KW. Cummins Generator Set Standard Configuration:

Generate Set, Components, Accompanying Technical Documents

*Diesel Engine, Radiator, Muffler

*Operator Manual (with all accessories, filters, electrical system, corrugated pipe, and factory test report)

*Alternator, Connecting Elbows, Generator Set Product Quality Certificate

*Steel Structure Base Frame, Battery and Cables

*Control Panel

*MCCB Air Protection Switch

*Shock Damping Pads

*Original Engine Quality Documents

*Original Generator Quality Documents All components are integrated into one unit.

Optional Cummins Diesel Generator Sets:

*Automatic Transfer Switch

*Automatic Parallelization Switch

*Daytime Fuel Tank

*Containerized Generator Set

*Low-Noise Generator Set

*Trailer Power Station

*Automatic Starter Panel

*Remote Computer Interface

*Spare Parts for 500-1000 Hours of Operation

1. 以上技术参数为50Hz，额定电压400/230V，功率因数0.8，接线方式为3相4线。60Hz发电机组可以根据客户的特殊需要订制。 2. 本数据表仅供参考，如有更改恕不另行通知。

Diesel Generator Set Usage Instructions

1. Use 0# to -30# light diesel oil; use 15W-40CD grade engine oil (or as specified in the diesel engine manual).

2. Starting temperature should be above +5℃; with a water/oil temperature heater, the starting temperature should be -15℃; when using the unit below 0℃, antifreeze and other low-temperature starting measures should be used.

3. Noise level: ≤85～95db(A), conforming to international standards.

4. In addition to 8KW-1600KW land-based generator sets, our company also provides marine generator sets of the same power range and various generator sets with a speed of 60HZ 1800 rpm.

5. The generator sets manufactured by our company comply with the provisions of GB/T2820.1, .5, .6 and ISO8528 "Reciprocating Internal Combustion Engine Driven Generator Sets".

6. Voltage regulation method: automatic or manual. 7. Note to users in cold regions: Adjust the engine oil, diesel fuel, and coolant levels appropriately according to temperature changes to ensure normal unit operation.

8. As products are continuously updated, sample parameters may change or be modified. The accompanying documentation shall prevail. Our company reserves the right of final interpretation without further notice.
